Network Cable/LAN Cable Outdoor UTP Cat5e Cable 24AWG, Copper Wire Data Cable Communication Cable Network Products PVC/LSZH

Basic Info.

Model NO.	CAT5E
Wire Core Material	Bare Copper Wire
Certification	CE, ISO, RoHS, CPR
Model	LAN Cable
Brand	Cx-Cable
Numbers of Conductor	8 Cores
Delivery Time	Within 30days
Transport Package	Customized
Specification	23/24/25 AWG CU
Trademark	Customized
Origin	Hangzhou, China
HS Code	8544491100
Production Capacity	20000boxes/Per Month

Product Description

Material Instruction:
1.24/25 AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH/PE Jacket , high-temperature resistance,long working life.

Type	UTP CAT5e
Conductor	24/25 AWG CU/CCA/CCAG
Insulation	0.90+/-0.1mm HDPE
Total number of insulated conductor	8, twisted in 4 pairs
Color code	white-blue/blue,white-orange/orange, white-green/green,white-brown/brown
First Sheath	PVC
Rip Cord	Yes
Second Sheath	PE
OEM is available

Impedance 1.0-100.0MHz (ohms)	100±15
D.C, Resistance @20ºC(ohms/km)	≤9.5
D.C. Resistance Unbalance(%)	Max 2.5
Insulation Resistance	>5000MΩ*KM
Rated Temperature	70ºC

Frequency (MHz)	Return loss (dB)	Attenuation (dB/100m)	NEXT (dB)	FEXT (dB)
1	20.00	2.10	64	63.8
4	23.01	4.30	55	51.7
10	25.00	6.60	49	43.8
16	25.00	8.20	46	39.7
20	25.00	9.20	44	37.7
31.25	23.64	11.80	42	33.8
62	21.54	17.10	37	27.6
100	20.11	22.00	34	23.6

	Delivery Time	Payment Terms	Shipping Method
Samle Order	1-3days	100% in Advance	By Air
LCL Order	3-25days	30% Deposit and the Balance Paid Before Shipment Or Against B/L Copy	By Air Or By Sea
FCL Order	25-45days		By Air Or By Sea

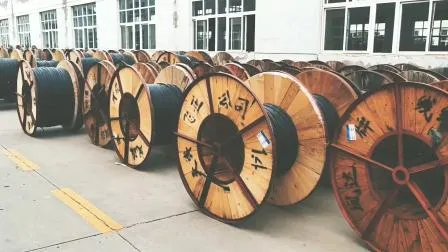

Linan Chuangxiang Cable Co., Ltd is a professional cable manufacturer in China,we have more than 11years in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients
and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world,and we sincerely look for-
ward to woking with all clients from all over the world.

Our main products:
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
Certifications:

1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.

2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.

3.What is your delivery time?
Usually within 30days after we received deposit.

4.What is your payment way?
T/T, L/C,it can be negotiated.

5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.

If you were interested in our competitive products,pls do not hesitate to contact us.
